    在前面两篇文档,在 Kubernetes 上动态创建 Jenkins SlaveKubernetes 添加 Windows 节点提供 Jenkins 构建动态 Agent 的基础之上,本篇文档主要尝试在 Kubernetes 上动态提供 Windows 构建 Agent 。

    1. 新增流水线

    Kubernetes 与 Jenkins 集成部分可以参考上面的两篇文档,这里直接新建两条流水线进行测试。

    • windows - jenkins 内置的流水线示例
    /*
     * Runs a build on a Windows pod.
     * Tested in EKS: https://docs.aws.amazon.com/eks/latest/userguide/windows-support.html
     */
    podTemplate(yaml: '''
    apiVersion: v1
    kind: Pod
    spec:
      containers:
      - name: jnlp
        image: jenkins/inbound-agent:windowsservercore-1809
      - name: shell
        image: mcr.microsoft.com/powershell:preview-windowsservercore-1809
        command:
        - powershell
        args:
        - Start-Sleep
        - 999999
      nodeSelector:
        kubernetes.io/os: windows
    ''') {
        node(POD_LABEL) {
            container('shell') {
                powershell 'Get-ChildItem Env: | Sort Name'
            }
        }
    }

    • windows-dotnet

    使用 dotnet 镜像进行构建

    pipeline {
      agent {
        kubernetes {
          yaml """
    apiVersion: v1
    kind: Pod
    metadata:
      name: windows
    spec:
      containers:
      - name: jnlp
        image: jenkins/inbound-agent:windowsservercore-1809
        tty: true
      - name: windows-dotnet
        image: mcr.microsoft.com/dotnet/core/sdk:2.1
        tty: true
      nodeSelector:
        kubernetes.io/os: windows
    """
        }
      }
      stages {
        stage('Run on windows') {
          steps {
            container(name:'windows-dotnet'){
              bat 'dotnet -h'
            }
          }
        }
      }
    }


    2. 查看结果

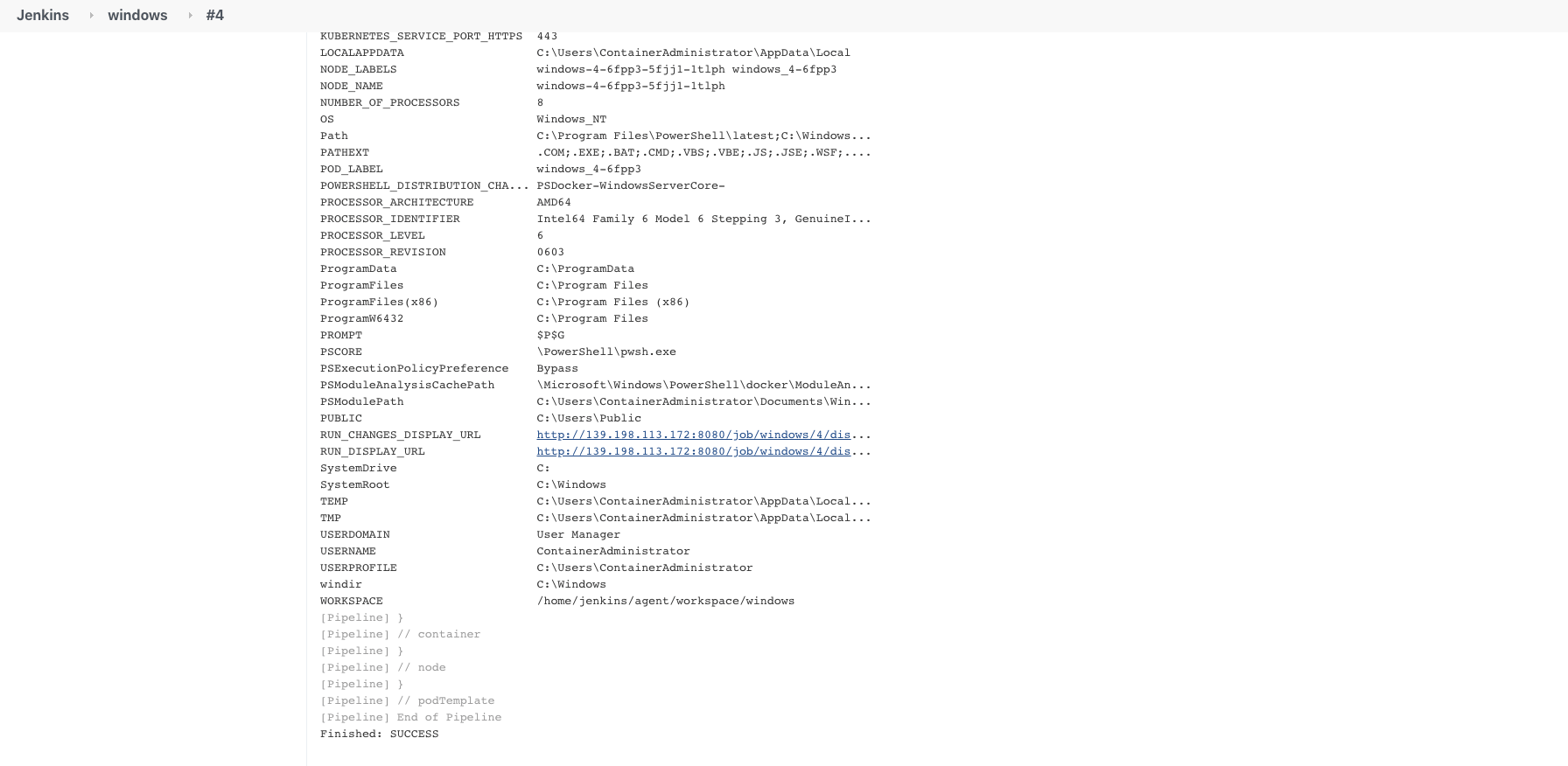

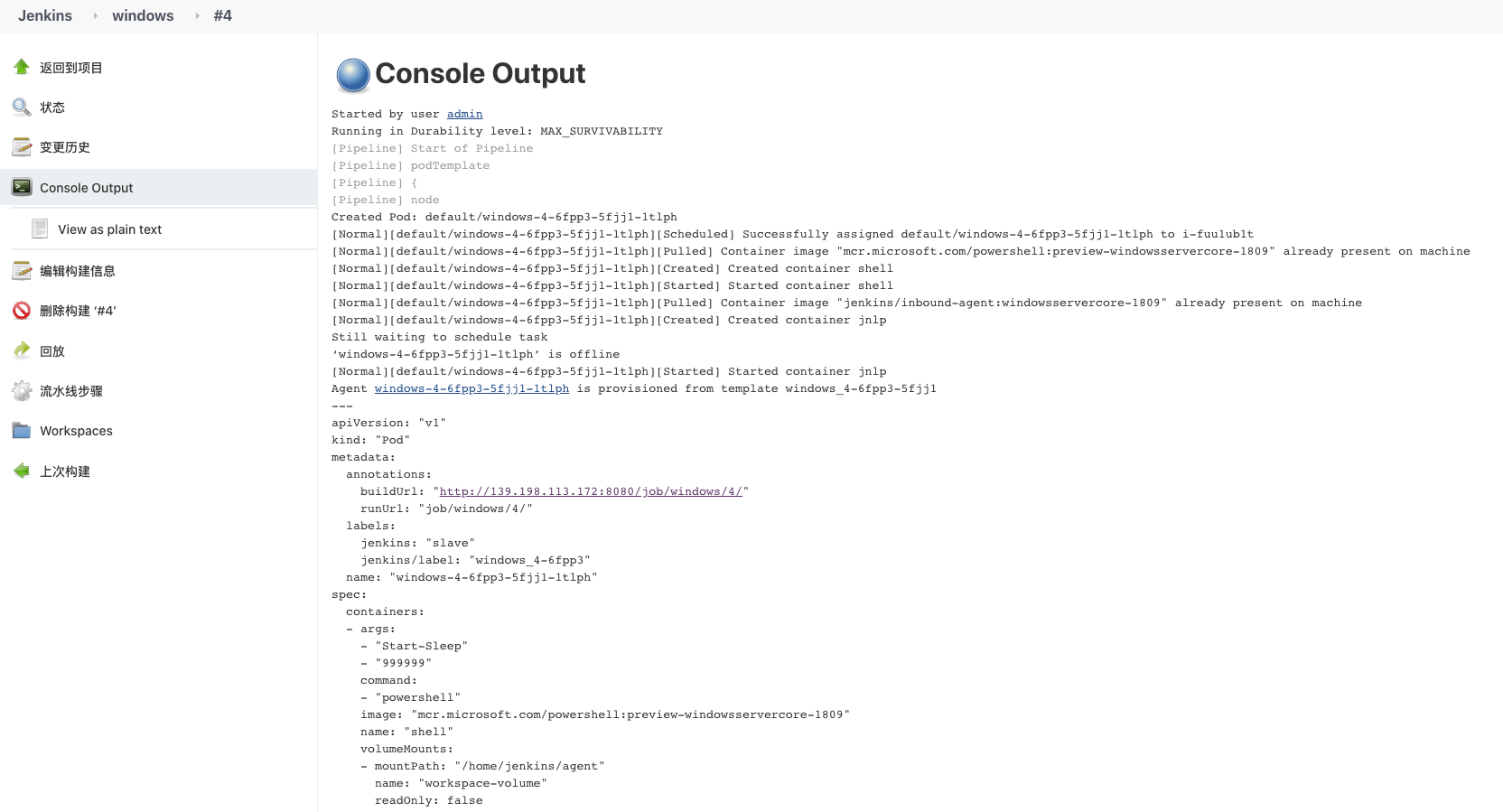

    • windows

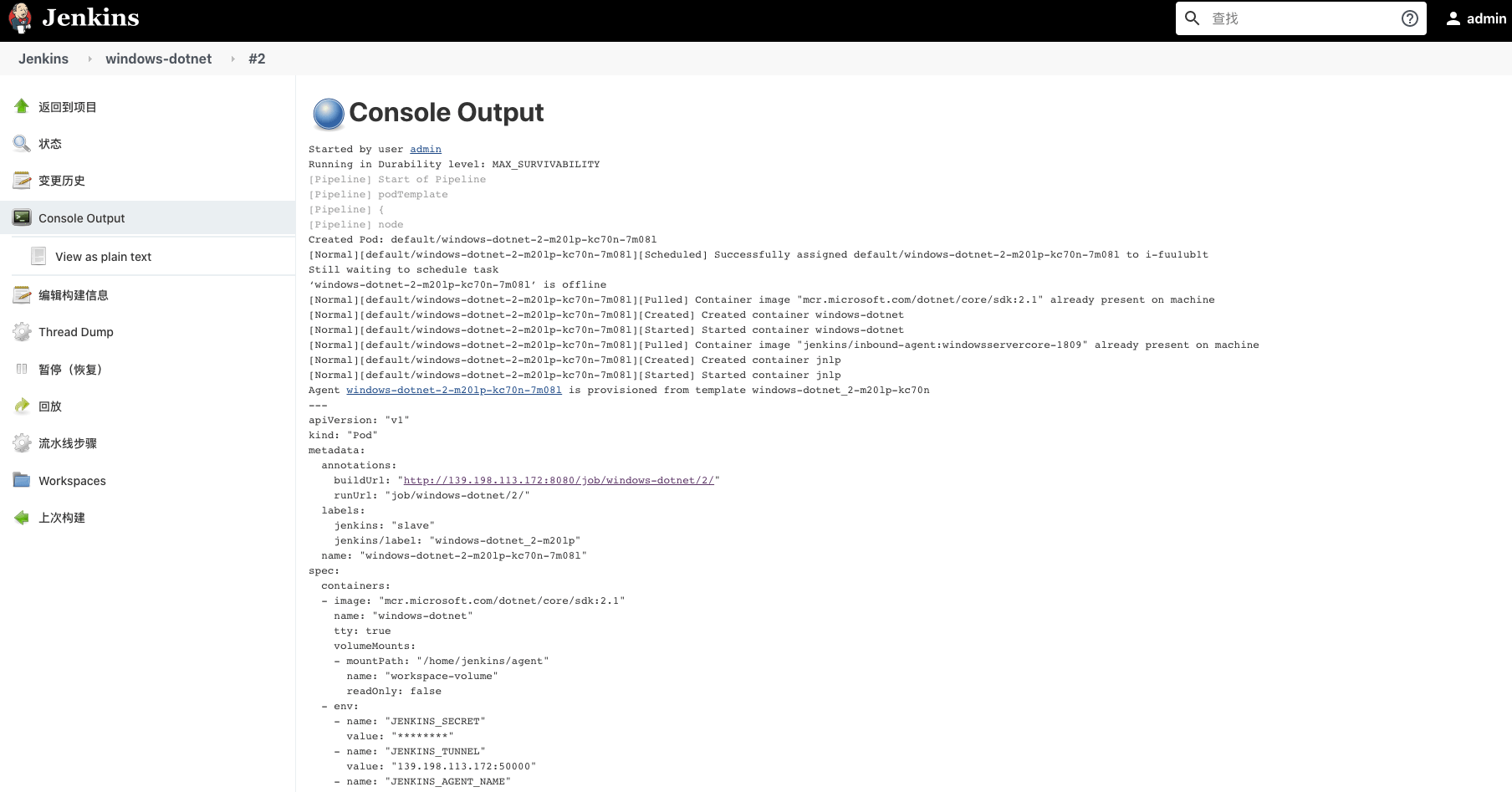

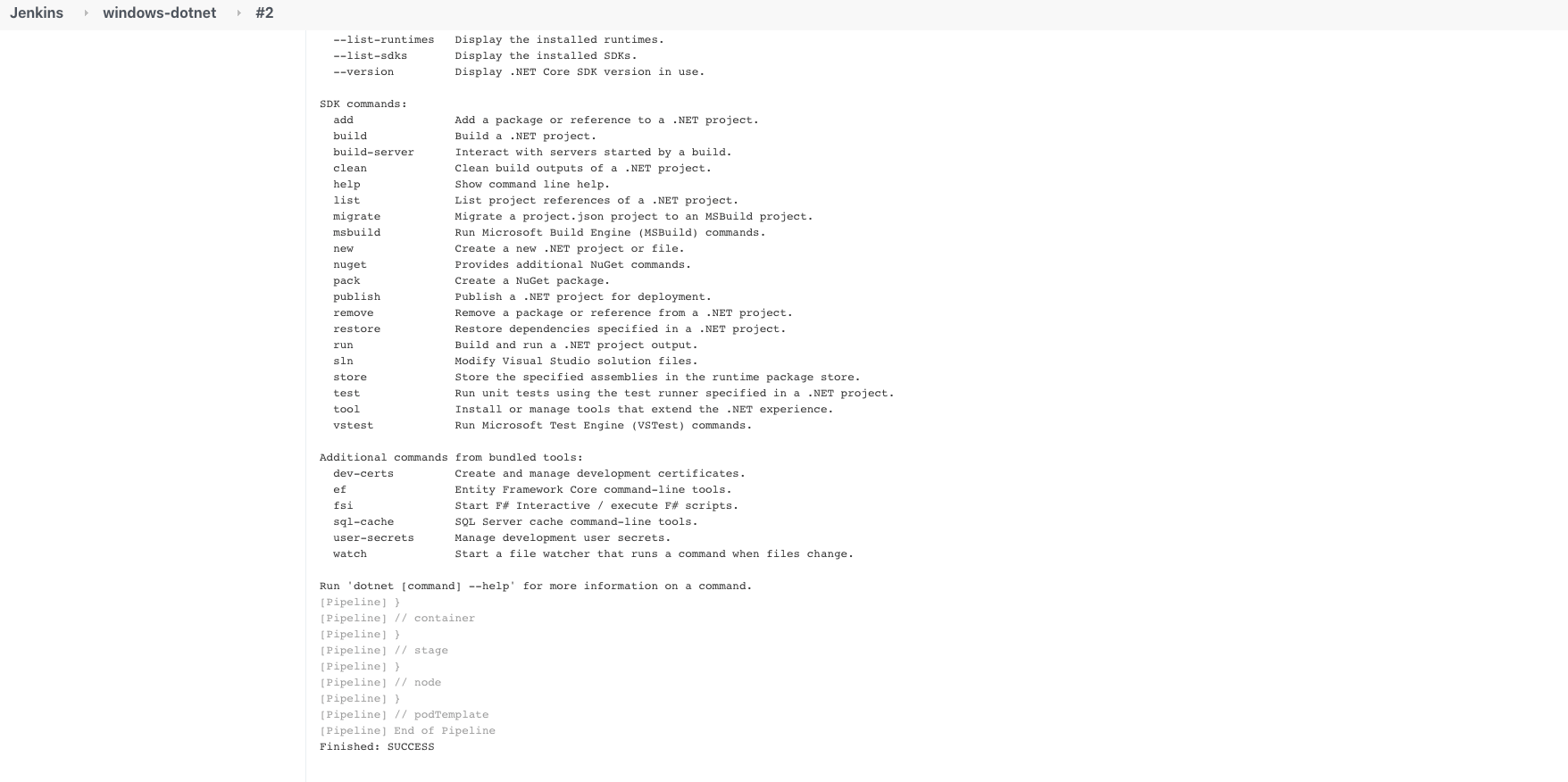

    • windows-dotnet

    • 查看 Windows 下载的镜像
    docker images

    REPOSITORY                          TAG                              IMAGE ID            CREATED             SIZE
    mcr.microsoft.com/powershell        preview-windowsservercore-1809   ff3a59b7e85e        3 days ago          5.24GB
    mcr.microsoft.com/dotnet/core/sdk   2.1                              4ca3f3cfa1e2        4 days ago          1.66GB
    jenkins/inbound-agent               windowsservercore-1809           45f5745f2aab        4 days ago          4.09GB


    Windows 节点的磁盘空间一定要很大才行。
