使用 Blackbox Exporter 测试网络连通性

 ·  ☕ 3 分钟

如果你需要监控两个主机、主机与外部服务之间的网络状况，那么就可以试一试本文提到的 Blackbox Exporter。

1. 安装 Blackbox

1.1 在主机上部署

  • 下载二进制包
1
2
3
4
5

wget https://github.com/prometheus/blackbox_exporter/releases/download/v0.21.0/blackbox_exporter-0.21.0.linux-amd64.tar.gz
tar -xzvf blackbox_exporter-0.21.0.linux-amd64.tar.gz
mv blackbox_exporter-0.21.0.linux-amd64/blackbox_exporter /usr/bin/
mkdir /etc/prometheus
mv blackbox_exporter-0.21.0.linux-amd64/blackbox.yml /etc/prometheus/
  • 清理安装包
1

rm -rf blackbox_exporter-0.21.0.linux-amd64*
  • 新建 Systemd 服务
1

vim /usr/lib/systemd/system/blackbox_exporter.service

新增如下内容:

[Unit]
Description=blackbox_exporter
After=network.target

[Service]
Restart=on-failure
ExecStart=/usr/bin/blackbox_exporter \
    --config.file=/etc/prometheus/blackbox.yml
Restart=on-failure

[Install]
WantedBy=multi-user.target
  • 启动服务
1
2

systemctl enable blackbox_exporter
systemctl start blackbox_exporter
  • 查看运行状态
1

systemctl status blackbox_exporter

1.2 在集群上部署

在 Kubernetes 上安装就简单多了，直接 apply 下面的 Yaml 就可以。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100

apiVersion: v1
kind: ConfigMap
metadata:
  name: blackbox-config
  namespace: kube-system
data:
  blackbox.yml: |-
    modules:
      http_2xx:
        prober: http
        http:
          preferred_ip_protocol: "ipv4"
      http_post_2xx:
        prober: http
        http:
          method: POST
      tcp_connect:
        prober: tcp
      pop3s_banner:
        prober: tcp
        tcp:
          query_response:
          - expect: "^+OK"
          tls: true
          tls_config:
            insecure_skip_verify: false
      grpc:
        prober: grpc
        grpc:
          tls: true
          preferred_ip_protocol: "ip4"
      grpc_plain:
        prober: grpc
        grpc:
          tls: false
          service: "service1"
      ssh_banner:
        prober: tcp
        tcp:
          query_response:
          - expect: "^SSH-2.0-"
          - send: "SSH-2.0-blackbox-ssh-check"
      irc_banner:
        prober: tcp
        tcp:
          query_response:
          - send: "NICK prober"
          - send: "USER prober prober prober :prober"
          - expect: "PING :([^ ]+)"
            send: "PONG ${1}"
          - expect: "^:[^ ]+ 001"
      icmp:
        prober: icmp
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: blackbox
  namespace: kube-system
spec:
  selector:
    matchLabels:
      app: blackbox
  template:
    metadata:
      labels:
        app: blackbox
    spec:
      hostAliases:
      - ip: "0.0.0.0"
        hostnames:
        - "dev.chenshaowen.com"
      containers:
      - image: prom/blackbox-exporter:v0.21.1
        name: blackbox
        args:
        - --config.file=/etc/blackbox_exporter/blackbox.yml
        - --log.level=error
        ports:
        - containerPort: 9115
        volumeMounts:
        - name: config
          mountPath: /etc/blackbox_exporter
      volumes:
      - name: config
        configMap:
          name: blackbox-config
---
apiVersion: v1
kind: Service
metadata:
  name: blackbox
  namespace: kube-system
spec:
  selector:
    app: blackbox
  ports:
  - port: 9115
    targetPort: 9115
  type: NodePort

2. 测试主机对外访问连通性

blackbox_exporter 默认在本地 9115 端口暴露服务。

实际上，通过拼接 URL 的方式，我们就可以实现主机对任意服务的连通测试，下面是一个实例，只需要提供 target、module 参数即可，其中 target 表示测试的目标，module 表示测试用的模块:

浏览器访问 http://BLACKBOX_HOST_IP:9115/probe?target=google.com&module=http_2xx，需要将 BLACKBOX_HOST_IP 替换为主机 IP。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

# HELP probe_dns_lookup_time_seconds Returns the time taken for probe dns lookup in seconds
# TYPE probe_dns_lookup_time_seconds gauge
probe_dns_lookup_time_seconds 0.030818323
# HELP probe_duration_seconds Returns how long the probe took to complete in seconds
# TYPE probe_duration_seconds gauge
probe_duration_seconds 0.353982702
# HELP probe_failed_due_to_regex Indicates if probe failed due to regex
# TYPE probe_failed_due_to_regex gauge
probe_failed_due_to_regex 0
# HELP probe_http_content_length Length of http content response
# TYPE probe_http_content_length gauge
probe_http_content_length -1
# HELP probe_http_duration_seconds Duration of http request by phase, summed over all redirects
# TYPE probe_http_duration_seconds gauge
probe_http_duration_seconds{phase="connect"} 0.08580119300000001
probe_http_duration_seconds{phase="processing"} 0.201979714
probe_http_duration_seconds{phase="resolve"} 0.060847821999999996
probe_http_duration_seconds{phase="tls"} 0
probe_http_duration_seconds{phase="transfer"} 0.003931112
# HELP probe_http_redirects The number of redirects
# TYPE probe_http_redirects gauge
probe_http_redirects 3
# HELP probe_http_ssl Indicates if SSL was used for the final redirect
# TYPE probe_http_ssl gauge
probe_http_ssl 0
# HELP probe_http_status_code Response HTTP status code
# TYPE probe_http_status_code gauge
probe_http_status_code 200
# HELP probe_http_uncompressed_body_length Length of uncompressed response body
# TYPE probe_http_uncompressed_body_length gauge
probe_http_uncompressed_body_length 13645
# HELP probe_http_version Returns the version of HTTP of the probe response
# TYPE probe_http_version gauge
probe_http_version 1.1
# HELP probe_ip_addr_hash Specifies the hash of IP address. It's useful to detect if the IP address changes.
# TYPE probe_ip_addr_hash gauge
probe_ip_addr_hash 4.032438981e+09
# HELP probe_ip_protocol Specifies whether probe ip protocol is IP4 or IP6
# TYPE probe_ip_protocol gauge
probe_ip_protocol 4
# HELP probe_success Displays whether or not the probe was a success
# TYPE probe_success gauge
probe_success 1

在注释中，对这些指标有着很详尽的描述，DNS 延时、响应、协议等。

3. Prometheus 配置

接着，我们可以让 Prometheus 定时抓取 blackbox 的指标。下面是相关的配置文件，需要将 BLACKBOX_HOST_IP 替换为 blackbox_exporter 部署主机的 IP 地址。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

    scrape_configs:
    - job_name: 'blackbox_http'
      metrics_path: /probe
      params:
        module: [http_2xx]
      static_configs:
      - targets: ['github.com']
        labels:
          url: 'github.com'
      - targets: ['dl-cdn.alpinelinux.org']
        labels:
          url: 'dl-cdn.alpinelinux.org'
      relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - target_label: __address__
        replacement: BLACKBOX_HOST_IP:9115
    - job_name: 'blackbox_icmp'
      metrics_path: /probe
      params:
        module: [icmp]
      static_configs:
      - targets: ['github.com']
        labels:
          url: 'github.com'
      - targets: ['dl-cdn.alpinelinux.org']
        labels:
          url: 'dl-cdn.alpinelinux.org'
      relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - target_label: __address__
        replacement: BLACKBOX_HOST_IP:9115

4. 配置 Grafana 面板

这里采用的是 https://grafana.com/grafana/dashboards/13587 面板。

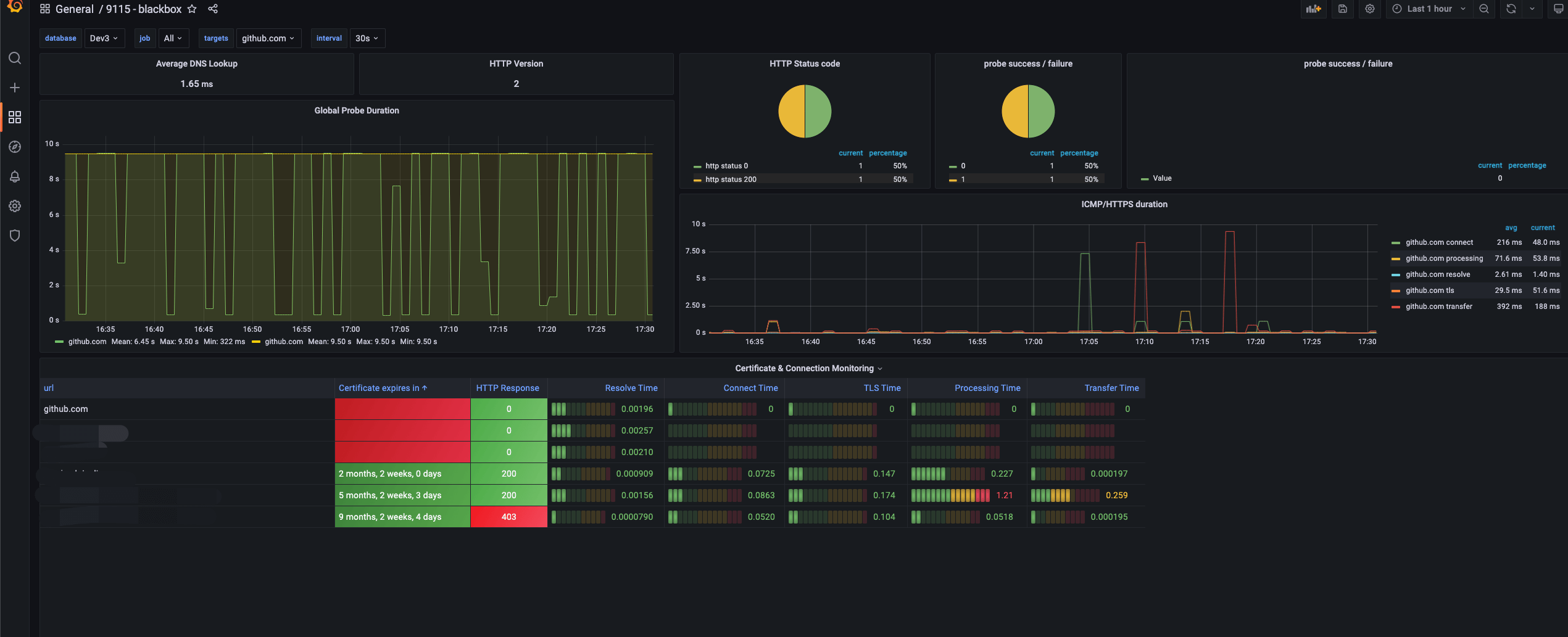

稍微进行了调整，最终看起来如下图:

5. 可能遇到的问题

5.1 probe_http_status_code 状态码一直为 0

blackbox_exporter 默认使用的是 ipv6 栈，需要手动指定为 ipv4。

编辑配置文件 /etc/prometheus/blackbox.yml 指定 ipv4 栈。

1
2
3
4
5

modules:
  http_2xx:
    prober: http
    http:
      preferred_ip_protocol: "ipv4"

然后，重启服务:

1

systemctl restart blackbox_exporter

5.2 Grafana 找不到 grafana-piechart-panel

  • 安装插件
1

grafana-cli plugins install grafana-piechart-panel
  • 在配置文件中指定插件的路径
vim /usr/local/grafana/conf/defaults.ini

[plugin.piechart]
path = /var/lib/grafana/plugins/grafana-piechart-panel
  • 重启 Grafana
1

systemctl restart grafana-server
