在 Kubernetes 集群上部署 Elasticsearch 栈

 ·  ☕ 3 分钟

如果采用 Logstash 集中接收 Filebeat 的日志输入,容易造成单点瓶颈;如果采用 Kafka 接收 Filebeat 的日志输入,日志的时效性又得不到保障。这里直接将 Filebeat 采集的日志直接输出到 Elasticsearch。

1. 准备工作

  • 节点规划

这里没有区分 master、data、client 节点,而是直接一个集群三个节点复用。如果是超大规模的 Elasticsearch 集群,建议区分控制面和数据面以提高稳定性。

  • 确保集群有可用的默认存储
1
2
3
4
kubectl get sc

NAME              PROVISIONER        RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
local (default)   openebs.io/local   Delete          WaitForFirstConsumer   false                  411d
  • 生成秘钥
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
export ELASTICSEARCH_IMAGE=k8simage/elasticsearch:7.17.5
docker rm -f elastic-helm-charts-certs || true
	rm -f elastic-certificates.p12 elastic-certificate.pem elastic-certificate.crt elastic-stack-ca.p12 || true
	docker run --name elastic-helm-charts-certs -i -w /tmp \
		$ELASTICSEARCH_IMAGE \
		/bin/sh -c " \
			elasticsearch-certutil ca --out /tmp/elastic-stack-ca.p12 --pass '' && \
			elasticsearch-certutil cert --name security-master --dns security-master --ca /tmp/elastic-stack-ca.p12 --pass '' --ca-pass '' --out /tmp/elastic-certificates.p12" && \
docker cp elastic-helm-charts-certs:/tmp/elastic-certificates.p12 ./ && \
docker rm -f elastic-helm-charts-certs && \
openssl pkcs12 -nodes -passin pass:'' -in elastic-certificates.p12 -out elastic-certificate.pem && \
openssl x509 -outform der -in elastic-certificate.pem -out elastic-certificate.crt
  • 创建 Kubernetes Secret 凭证
1
2
3
4
kubectl create ns elastic
kubectl -n elastic create secret generic elastic-certificates --from-file=elastic-certificates.p12
kubectl -n elastic create secret generic elastic-certificate-pem --from-file=elastic-certificate.pem
kubectl -n elastic create secret generic elastic-certificate-crt --from-file=elastic-certificate.crt
  • 创建登录用户及密码
1
2
3
4
5
6
7
ELASTIC_USER=elastic
ELASTIC_PASSWORD=XXXXXX

kubectl create secret generic elastic-credentials -n elastic \
  --from-literal=username="${ELASTIC_USER}" \
  --from-literal=password="${ELASTIC_PASSWORD}" \
  --dry-run=client -o yaml | kubectl apply -f -
  • 添加 Elastic Helm Charts 仓库
1
helm repo add elastic https://helm.elastic.co

2. 安装 Elasticsearch

  • 创建一个 values.yaml 文件,配置安装参数
1
vim es-master-values.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
clusterName: "elasticsearch"
nodeGroup: "master"
roles:
  master: "true"
  ingest: "true"
  data: "true"

imageTag: 7.17.5
image: k8simage/elasticsearch

volumeClaimTemplate:
  accessModes: ["ReadWriteOnce"]
  resources:
    requests:
      storage: 200Gi

replicas: 3

esConfig:
  elasticsearch.yml: |
    xpack.security.enabled: true
    xpack.security.transport.ssl.enabled: true
    xpack.security.transport.ssl.verification_mode: certificate
    xpack.security.transport.ssl.keystore.path: /usr/share/elasticsearch/config/certs/elastic-certificates.p12
    xpack.security.transport.ssl.truststore.path: /usr/share/elasticsearch/config/certs/elastic-certificates.p12

extraEnvs:
  - name: ELASTIC_PASSWORD
    valueFrom:
      secretKeyRef:
        name: elastic-credentials
        key: password

secretMounts:
  - name: elastic-certificates
    secretName: elastic-certificates
    path: /usr/share/elasticsearch/config/certs

antiAffinity: "soft"
  • 开始安装组件
1
helm install elasticsearch-master elastic/elasticsearch -n elastic --values es-master-values.yaml --set service.type=NodePort

3. 安装 Kibana

  • 创建一个 values.yaml 文件,配置安装参数
1
vim kibana-values.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
elasticsearchHosts: "http://elasticsearch-master.elastic.svc:9200"
imageTag: 7.17.5
image: k8simage/kibana
replicas: 1

extraEnvs:
  - name: "NODE_OPTIONS"
    value: "--max-old-space-size=1800"
  - name: "ELASTICSEARCH_USERNAME"
    valueFrom:
      secretKeyRef:
        name: elastic-credentials
        key: username
  - name: "ELASTICSEARCH_PASSWORD"
    valueFrom:
      secretKeyRef:
        name: elastic-credentials
        key: password
  • 开始安装组件
1
helm install kibana elastic/kibana -n elastic --values kibana-values.yaml --set service.type=NodePort

4. 安装 Filebeat

  • 创建一个 values.yaml 文件,配置安装参数
1
vim filebeat-values.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
image: k8simage/filebeat

daemonset:
  extraEnvs:
    - name: "ELASTICSEARCH_USERNAME"
      valueFrom:
        secretKeyRef:
          name: elastic-credentials
          key: username
    - name: "ELASTICSEARCH_PASSWORD"
      valueFrom:
        secretKeyRef:
          name: elastic-credentials
          key: password
  filebeatConfig:
    filebeat.yml: |
      filebeat.inputs:
        - type: filestream
          id: varlog
          paths:
            - /var/log/*.log
        - type: container
          enabled: true
          paths:
            - /var/lib/docker/containers/*/*.log
      output.elasticsearch:
        host: "${NODE_NAME}"
        hosts: '["http://${ELASTICSEARCH_HOSTS:elasticsearch-master:9200}"]'
        username: "${ELASTICSEARCH_USERNAME}"
        password: "${ELASTICSEARCH_PASSWORD}"
        protocol: http

filebeat.yml 中的 filebeat.inputs 决定了 filebeat 会采集哪些日志。

  • 开始安装组件
1
helm install filebeat elastic/filebeat -n elastic --values filebeat-values.yaml

5. 查看服务验证功能

  • 确保所有服务正常启动
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
kubectl -n elastic get pod

NAME                             READY   STATUS    RESTARTS   AGE
elasticsearch-master-0           1/1     Running   0          10h
elasticsearch-master-1           1/1     Running   0          10h
elasticsearch-master-2           1/1     Running   0          10h
filebeat-filebeat-4l9jh          1/1     Running   0          9h
filebeat-filebeat-4m7r6          1/1     Running   0          9h
filebeat-filebeat-6x9pd          1/1     Running   0          9h
kibana-kibana-7976c5dc76-xfswq   1/1     Running   0          10h
  • 查看访问的端口
1
2
3
4
5
6
kubectl -n elastic get svc

NAME                            TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                         AGE
elasticsearch-master            NodePort    10.233.35.209   <none>        9200:30093/TCP,9300:31743/TCP   10h
elasticsearch-master-headless   ClusterIP   None            <none>        9200/TCP,9300/TCP               10h
kibana-kibana                   NodePort    10.233.53.16    <none>        5601:30454/TCP                  11h
  • 访问 Elasticsearch

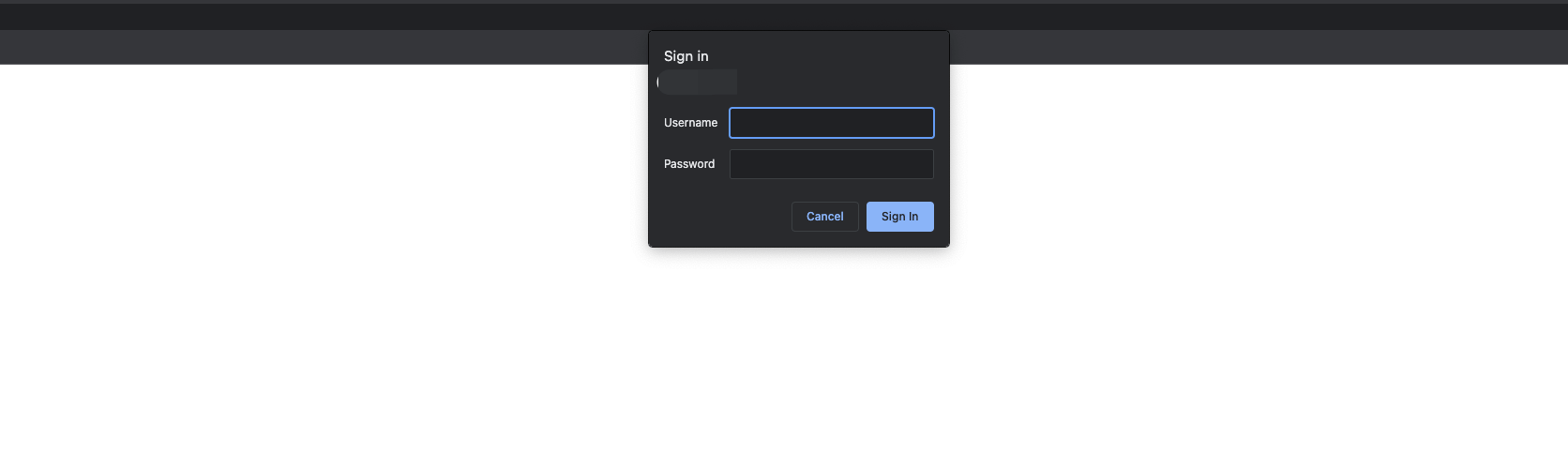

通过 HOST_IP:30093 可以访问 Elasticsearch,如下图,此时需要输入账号密码,elastic:XXXXXX,也就是在准备工作中设置的账户信息。

正确输入凭证之后,Elasticsearch 会返回集群相关信息。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
{
  "name": "elasticsearch-master-1",
  "cluster_name": "elasticsearch",
  "cluster_uuid": "D6ugYWeTQSqi3kUAK-B36w",
  "version": {
    "number": "7.17.5",
    "build_flavor": "default",
    "build_type": "docker",
    "build_hash": "8d61b4f7ddf931f219e3745f295ed2bbc50c8e84",
    "build_date": "2022-06-23T21:57:28.736740635Z",
    "build_snapshot": false,
    "lucene_version": "8.11.1",
    "minimum_wire_compatibility_version": "6.8.0",
    "minimum_index_compatibility_version": "6.0.0-beta1"
  },
  "tagline": "You Know, for Search"
}
  • 访问 Kibana

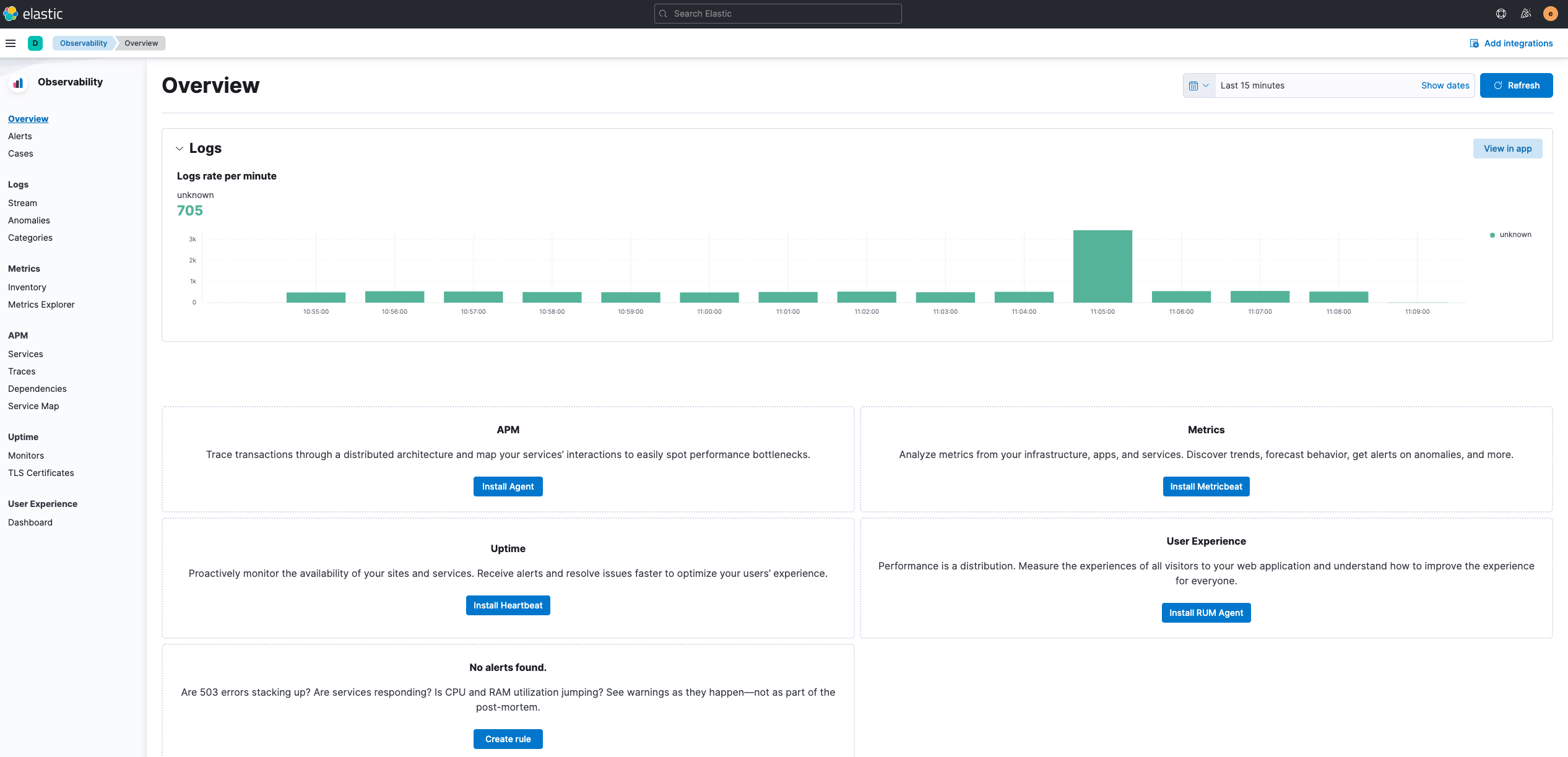

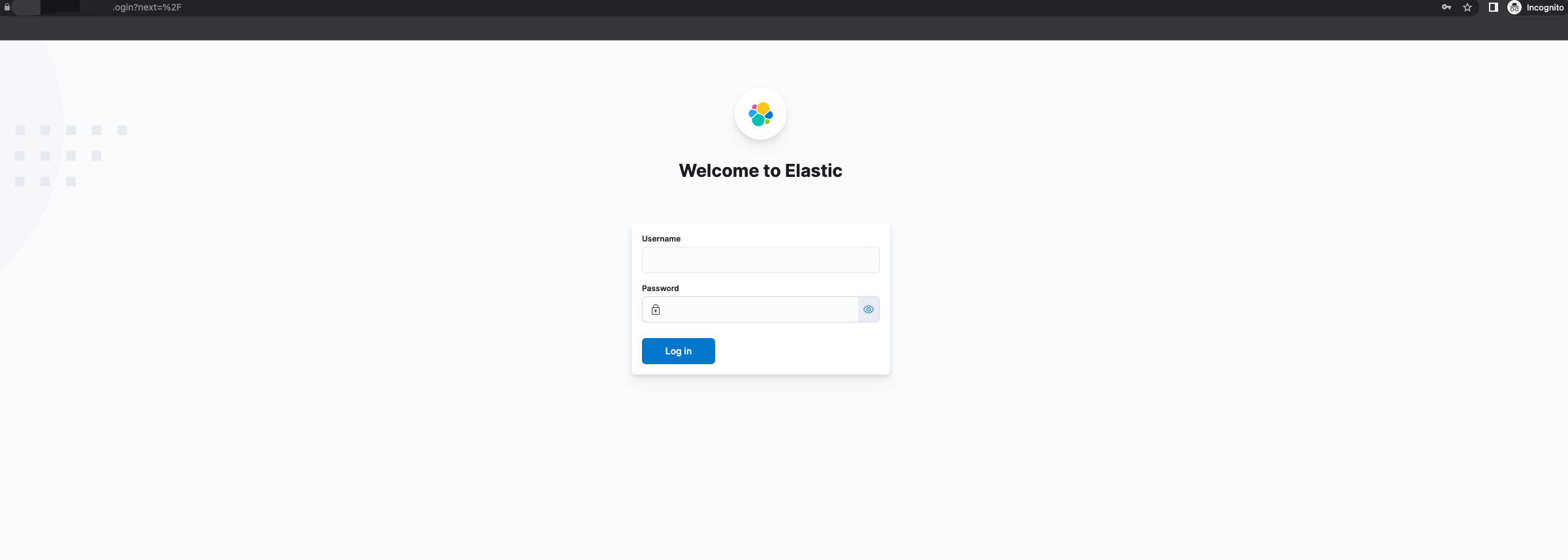

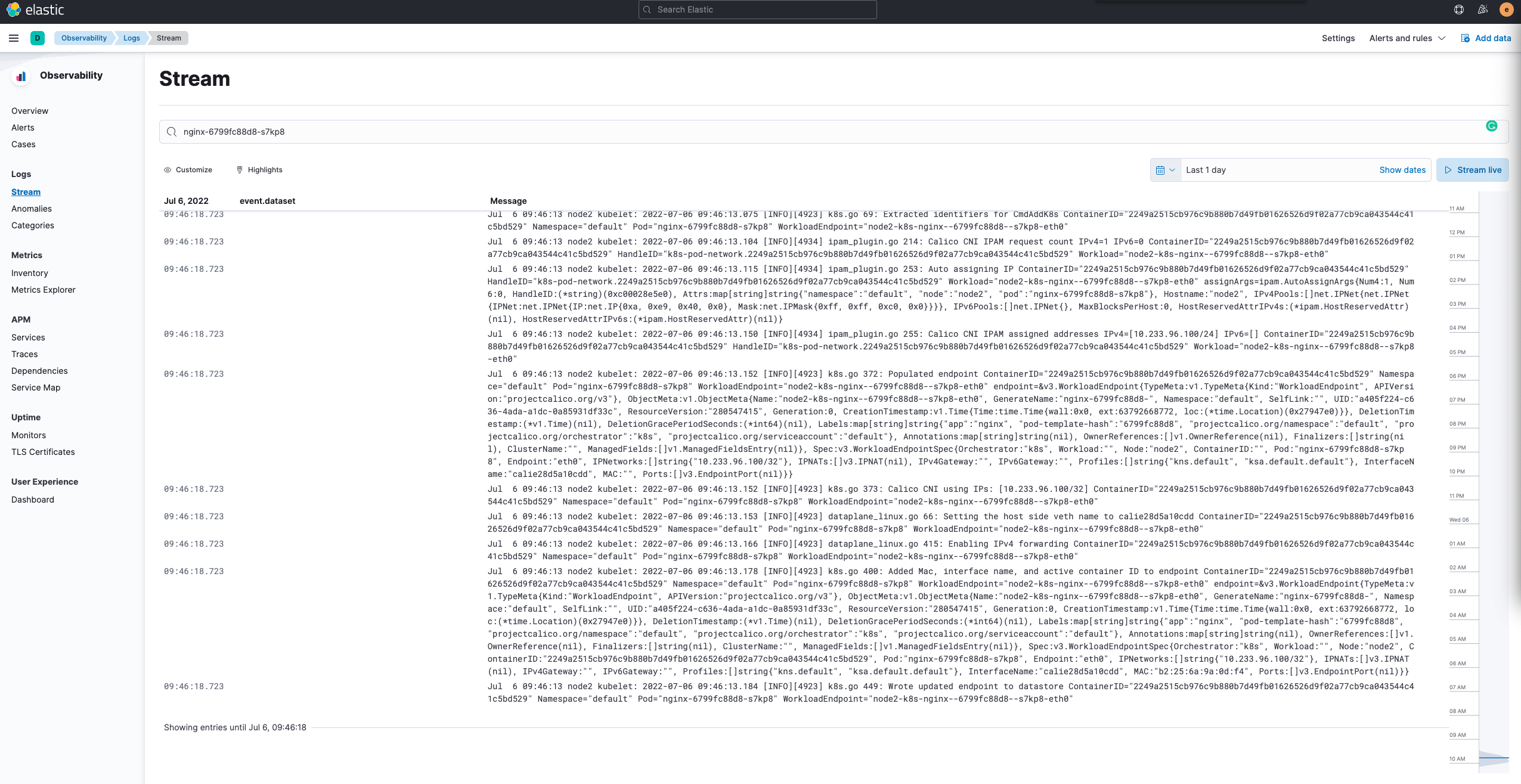

通过 HOST_IP:30454 可以访问 Kibana,如下图,与 Elasticsearch 的账户一样。

6. 清理环境

  • 卸载 Elasticsearch
1
helm uninstall elasticsearch-master -n elastic
  • 卸载 Kibana
1
helm uninstall kibana -n elastic
  • 卸载 Filebeat
1
helm uninstall filebeat -n elastic
  • 清理存储
1
kubectl -n elastic  delete pvc --all
  • 清理环境变量
1
2
unset ELASTIC_USER
unset ELASTIC_PASSWORD
