    在需求逐步确认的过程中,系统的 DB 模型也逐步确认。有时使用,MySQL Workbench 这类工具绘制 E-R 图,然后生成 MySQL 数据库表,这时就需要反向生成 Django Models;有时直接写 Django Models ,但是又需要查看 E-R 图。本文主要解决上面两个需求,实现 Django Models 与 E-R 图之间的转换。

    1. 生成 model 的关系图

    Django 提供第三方包 django-extensions,可以用来将 Django 中的 Models 生成 E-R 图。

    1.1 安装包

    pip install django-extensions


    1.2 配置

    在 Django settings.py 文件, INSTALLED_APPS 中添加 django_extensions

    INSTALLED_APPS = (
        'django_extensions',
    )


    1.3 生成 dot 文件和 png 图片

    • 生成全部 model 的 E-R 图
    python manage.py graph_models -a > all.dot

    • 单独某个 Django App (以 django_view_permission 为例) 生成 dot 文件。
    python manage.py graph_models django_view_permission > django_view_permission.dot


    导出的 dot 内容如下: django_view_permission.dot

    digraph model_graph {
      // Dotfile by Django-Extensions graph_models
      // Created: 2018-03-03 14:55
      // Cli Options: django_view_permission

      fontname = "Helvetica"
      fontsize = 8
      splines  = true

      node [
        fontname = "Helvetica"
        fontsize = 8
        shape = "plaintext"
      ]

      edge [
        fontname = "Helvetica"
        fontsize = 8
      ]

      // Labels

      django_view_permission_models_CommonElement [label=<
        <TABLE BGCOLOR="palegoldenrod" BORDER="0" CELLBORDER="0" CELLSPACING="0">
        <TR><TD COLSPAN="2" CELLPADDING="4" ALIGN="CENTER" BGCOLOR="olivedrab4">
        <FONT FACE="Helvetica Bold" COLOR="white">
        CommonElement
        </FONT></TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">create_time</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">DateTimeField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">doc</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">TextField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">update_time</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">DateTimeField</FONT>
        </TD></TR>

        </TABLE>
        >]

      django_view_permission_models_View [label=<
        <TABLE BGCOLOR="palegoldenrod" BORDER="0" CELLBORDER="0" CELLSPACING="0">
        <TR><TD COLSPAN="2" CELLPADDING="4" ALIGN="CENTER" BGCOLOR="olivedrab4">
        <FONT FACE="Helvetica Bold" COLOR="white">
        View<BR/>&lt;<FONT FACE="Helvetica Italic">CommonElement</FONT>&gt;
        </FONT></TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT FACE="Helvetica Bold">id</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT FACE="Helvetica Bold">AutoField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">create_time</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">DateTimeField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">doc</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">TextField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">func</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">CharField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">module</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">CharField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">name</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica ">CharField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">update_time</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">DateTimeField</FONT>
        </TD></TR>

        </TABLE>
        >]

      django_view_permission_models_ViewSet [label=<
        <TABLE BGCOLOR="palegoldenrod" BORDER="0" CELLBORDER="0" CELLSPACING="0">
        <TR><TD COLSPAN="2" CELLPADDING="4" ALIGN="CENTER" BGCOLOR="olivedrab4">
        <FONT FACE="Helvetica Bold" COLOR="white">
        ViewSet<BR/>&lt;<FONT FACE="Helvetica Italic">CommonElement</FONT>&gt;
        </FONT></TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT FACE="Helvetica Bold">id</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT FACE="Helvetica Bold">AutoField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">create_time</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">DateTimeField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">doc</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">TextField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT FACE="Helvetica ">name</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT FACE="Helvetica ">CharField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">update_time</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">DateTimeField</FONT>
        </TD></TR>

        </TABLE>
        >]

      django_view_permission_models_ViewPermission [label=<
        <TABLE BGCOLOR="palegoldenrod" BORDER="0" CELLBORDER="0" CELLSPACING="0">
        <TR><TD COLSPAN="2" CELLPADDING="4" ALIGN="CENTER" BGCOLOR="olivedrab4">
        <FONT FACE="Helvetica Bold" COLOR="white">
        ViewPermission<BR/>&lt;<FONT FACE="Helvetica Italic">CommonElement</FONT>&gt;
        </FONT></TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT FACE="Helvetica Bold">id</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT FACE="Helvetica Bold">AutoField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">create_time</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">DateTimeField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">doc</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">TextField</FONT>
        </TD></TR>

        <TR><TD ALIGN="LEFT" BORDER="0">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">update_time</FONT>
        </TD><TD ALIGN="LEFT">
        <FONT COLOR="#7B7B7B" FACE="Helvetica Italic">DateTimeField</FONT>
        </TD></TR>

        </TABLE>
        >]
      // Relations

      django_view_permission_models_View -> django_view_permission_models_CommonElement
      [label="abstract\ninheritance"] [arrowhead=empty, arrowtail=none, dir=both];

      django_view_permission_models_ViewSet -> django_view_permission_models_View
      [label="views (viewset)"] [arrowhead=dot arrowtail=dot, dir=both];

      django_view_permission_models_ViewSet -> django_view_permission_models_CommonElement
      [label="abstract\ninheritance"] [arrowhead=empty, arrowtail=none, dir=both];
      account_models_BkUser [label=<
      <TABLE BGCOLOR="palegoldenrod" BORDER="0" CELLBORDER="0" CELLSPACING="0">
      <TR><TD COLSPAN="2" CELLPADDING="4" ALIGN="CENTER" BGCOLOR="olivedrab4">
      <FONT FACE="Helvetica Bold" COLOR="white">BkUser</FONT>
      </TD></TR>
      </TABLE>
      >]
      django_view_permission_models_ViewPermission -> account_models_BkUser
      [label="users (viewpermission)"] [arrowhead=dot arrowtail=dot, dir=both];

      django_view_permission_models_ViewPermission -> django_view_permission_models_View
      [label="views (viewpermission)"] [arrowhead=dot arrowtail=dot, dir=both];

      django_view_permission_models_ViewPermission -> django_view_permission_models_ViewSet
      [label="views_set (viewpermission)"] [arrowhead=dot arrowtail=dot, dir=both];

      django_view_permission_models_ViewPermission -> django_view_permission_models_CommonElement
      [label="abstract\ninheritance"] [arrowhead=empty, arrowtail=none, dir=both];
    }

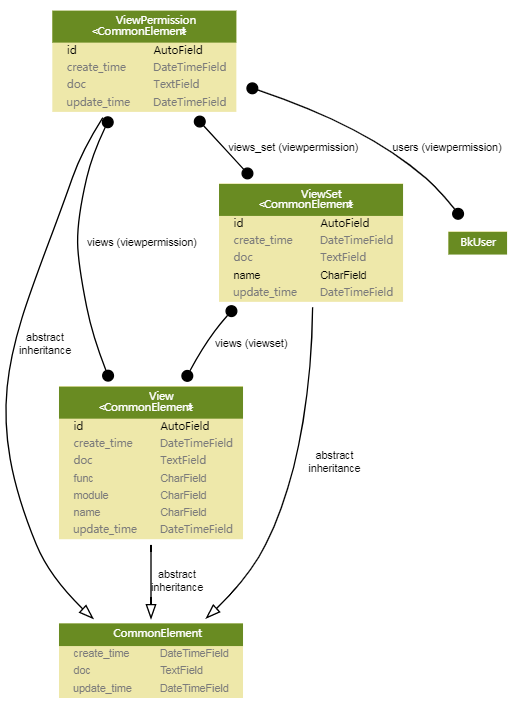

    • 生成图片

    由于生成的是 dot 格式的图片描述文件,需要使用工具进行转换成常用的 PNG 格式图片。可以下载 graphviz ,并将 /bin/dot.exe 加入系统 PATH 中。

    dot -Tpng django_view_permission.dot > django_view_permission.png


    还可以使用在线 Dot 预览工具 GraphvizOnline 查看,下载 PNG 图片。

    2. 生成数据库的 models.py

    Django 内置了 inspectdb 命令,可以利用数据库对应的表关系和字段,生成 Django Models。

    python manage.py inspectdb export_models.py


    导出的文件内容如下: export_models.py

    # This is an auto-generated Django model module.
    # You'll have to do the following manually to clean this up:
    #   * Rearrange models' order
    #   * Make sure each model has one field with primary_key=True
    #   * Remove `managed = False` lines if you wish to allow Django to create, modify, and delete the table
    # Feel free to rename the models, but don't rename db_table values or field names.
    #
    # Also note: You'll have to insert the output of 'django-admin sqlcustom [app_label]'
    # into your database.
    from __future__ import unicode_literals

    from django.db import models

    class DjangoViewPermissionView(models.Model):
        doc = models.TextField(blank=True, null=True)
        create_time = models.DateTimeField()
        update_time = models.DateTimeField()
        module = models.CharField(max_length=255, blank=True, null=True)
        func = models.CharField(max_length=255, blank=True, null=True)
        name = models.CharField(max_length=255, blank=True, null=True)

        class Meta:
            managed = False
            db_table = 'django_view_permission_view'
            unique_together = (('func', 'module', 'name'),)


    class DjangoViewPermissionViewPermission(models.Model):
        doc = models.TextField(blank=True, null=True)
        create_time = models.DateTimeField()
        update_time = models.DateTimeField()

        class Meta:
            managed = False
            db_table = 'django_view_permission_view_permission'


    class DjangoViewPermissionViewPermissionUsers(models.Model):
        viewpermission = models.ForeignKey(DjangoViewPermissionViewPermission)
        bkuser = models.ForeignKey(AuthUser)

        class Meta:
            managed = False
            db_table = 'django_view_permission_view_permission_users'
            unique_together = (('viewpermission_id', 'bkuser_id'),)


    class DjangoViewPermissionViewPermissionViews(models.Model):
        viewpermission = models.ForeignKey(DjangoViewPermissionViewPermission)
        view = models.ForeignKey(DjangoViewPermissionView)

        class Meta:
            managed = False
            db_table = 'django_view_permission_view_permission_views'
            unique_together = (('viewpermission_id', 'view_id'),)


    class DjangoViewPermissionViewPermissionViewsSet(models.Model):
        viewpermission = models.ForeignKey(DjangoViewPermissionViewPermission)
        viewset = models.ForeignKey('DjangoViewPermissionViewSet')

        class Meta:
            managed = False
            db_table = 'django_view_permission_view_permission_views_set'
            unique_together = (('viewpermission_id', 'viewset_id'),)


    class DjangoViewPermissionViewSet(models.Model):
        doc = models.TextField(blank=True, null=True)
        create_time = models.DateTimeField()
        update_time = models.DateTimeField()
        name = models.CharField(unique=True, max_length=255)

        class Meta:
            managed = False
            db_table = 'django_view_permission_view_set'


    class DjangoViewPermissionViewSetViews(models.Model):
        viewset = models.ForeignKey(DjangoViewPermissionViewSet)
        view = models.ForeignKey(DjangoViewPermissionView)

        class Meta:
            managed = False
            db_table = 'django_view_permission_view_set_views'
            unique_together = (('viewset_id', 'view_id'),)


    需要注意的是,使用 migrate 命令创建数据库表时,managed = False 的 Models 会被忽略。
